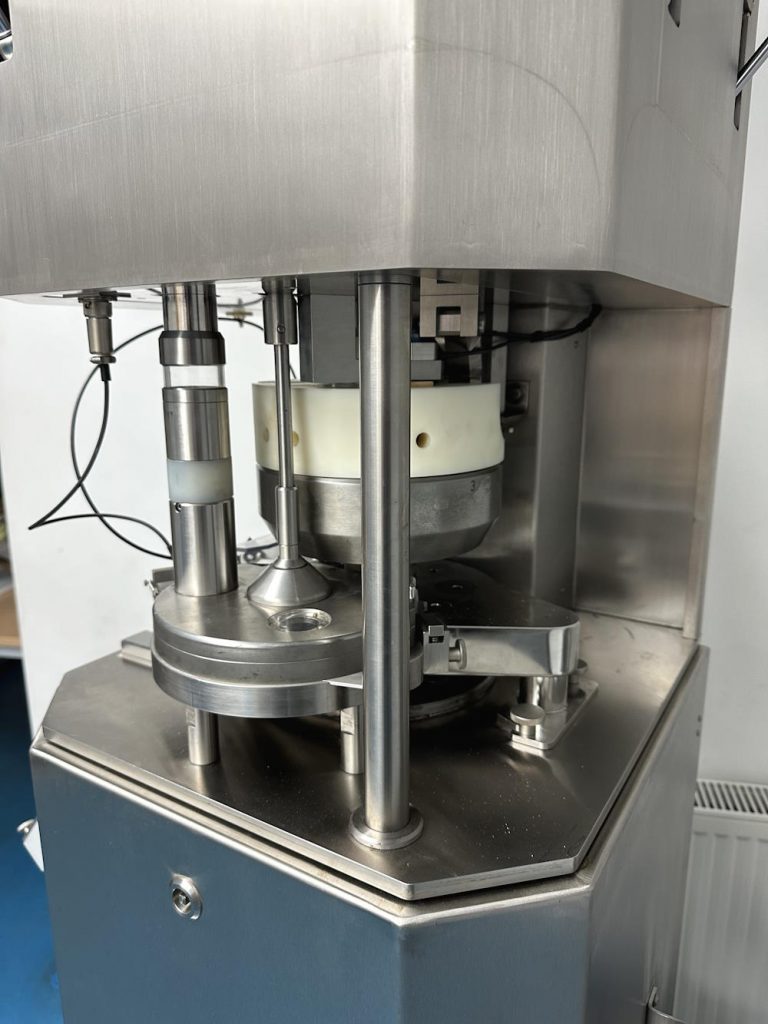

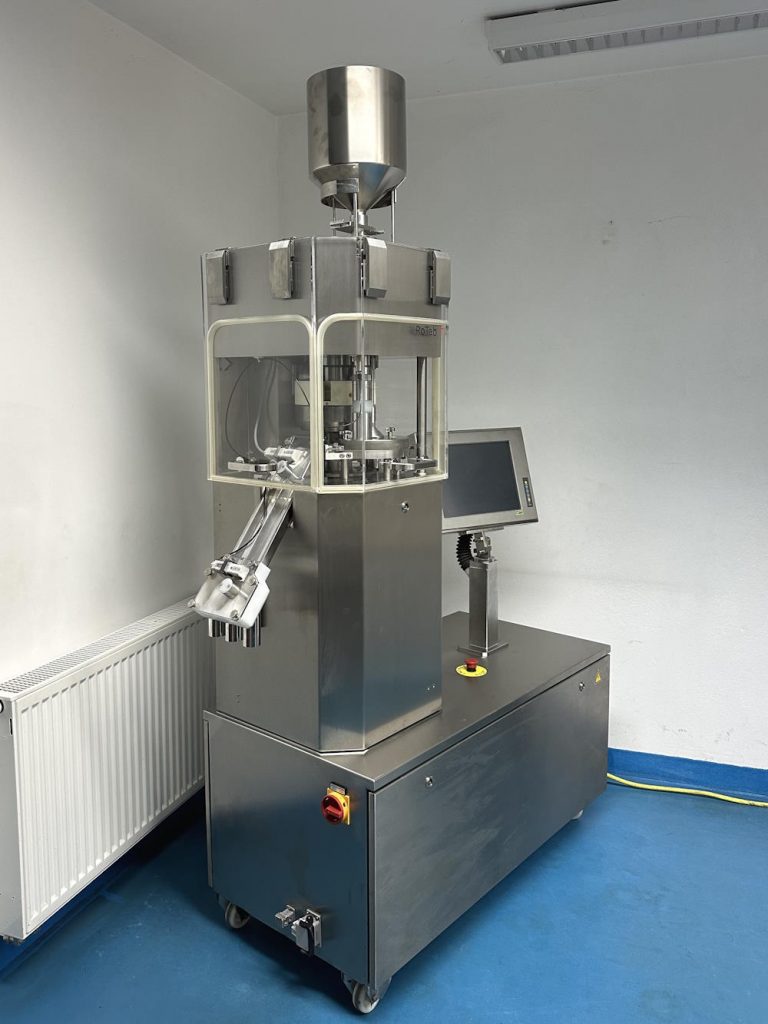

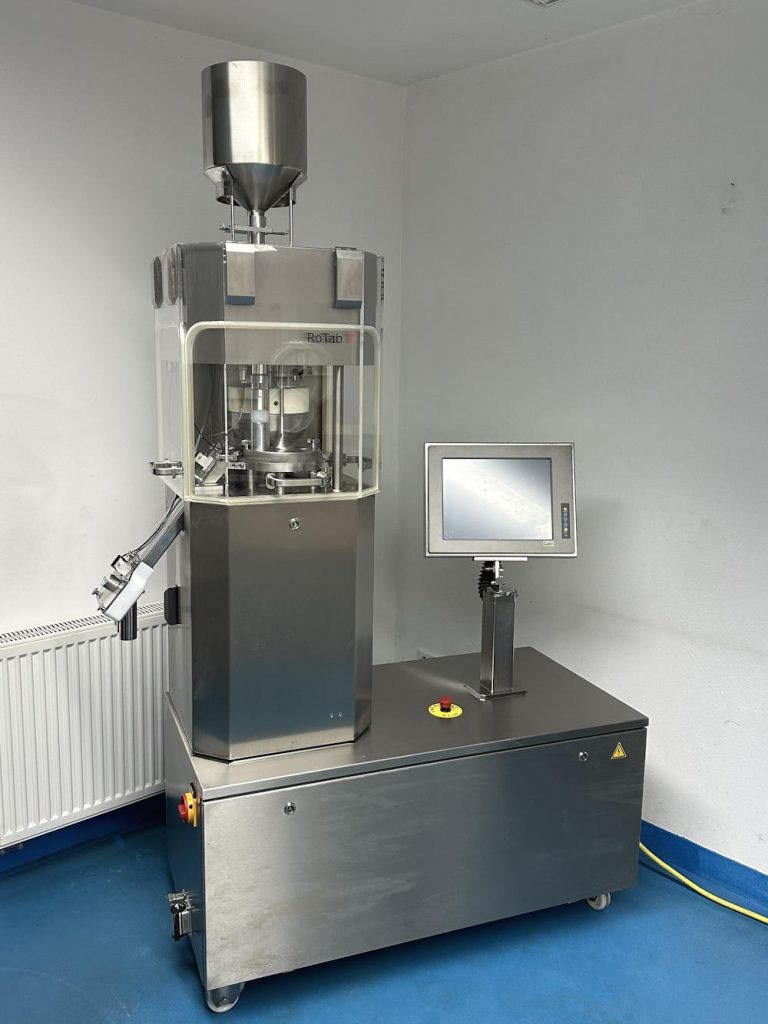

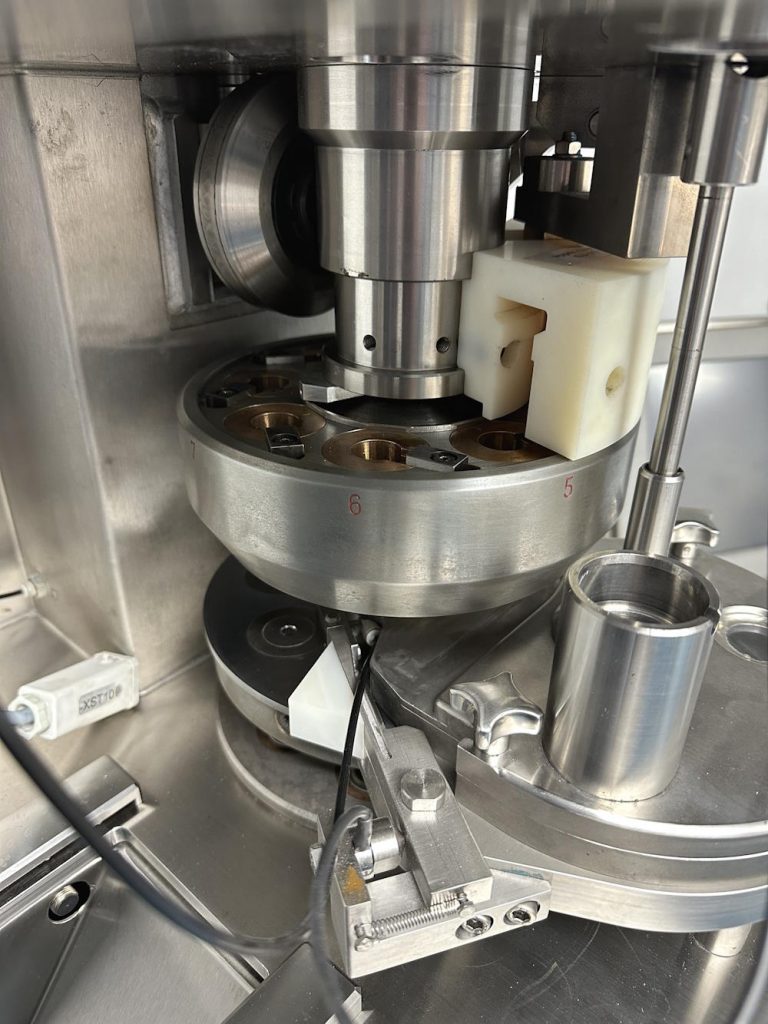

LUXNER RoTab T Rotary tablet press
Pre owned machine
- Mobile tablet press for R&D and small series production
- Highly flexible with FlexAdapt turret
- Only 15 hours of operation!
- Discharge chute with batch diverter (3 channels)

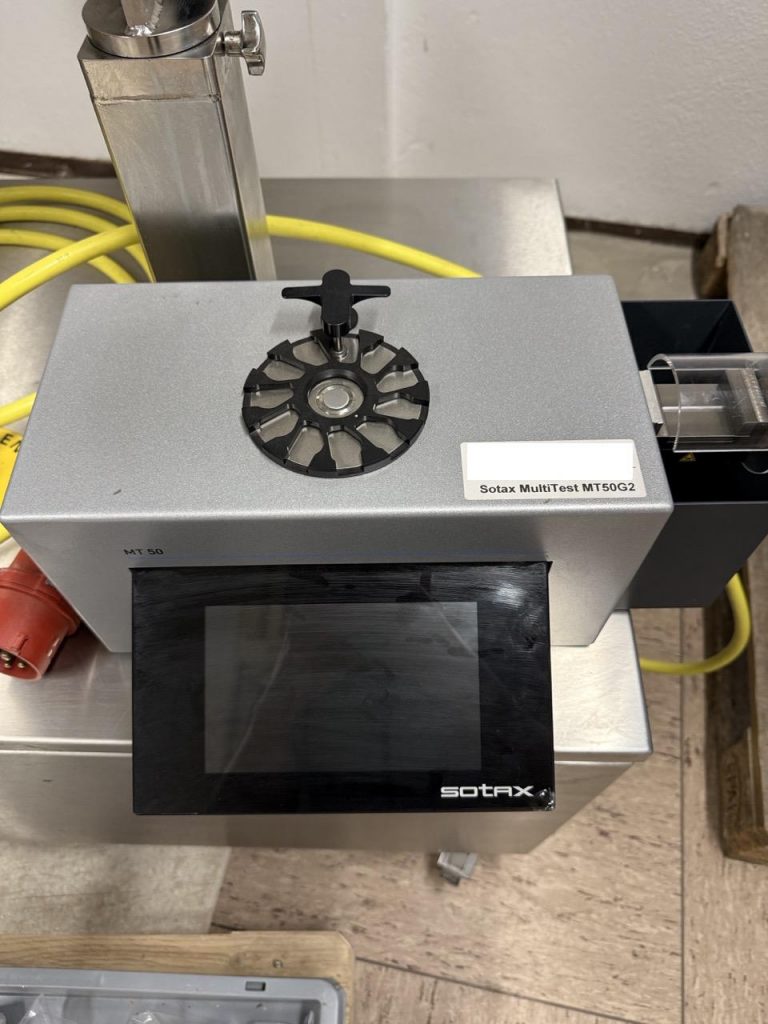

- Includes Sotax MT50 tablet tester, built in 2020
- Includes 3 sets of punches: diameter 14 mm / 18 mm / 22 mm
- Complete documentation and accessories
- Further photos available on request
- Retrofits according to your requirements
- Delivery of tableting tools
| Manufacturer | LUXNER |
| Machine type |
RoTab T |
| Year of manufacture | 2012 |
| Tool type | EU-19 and EU-1″ FlexAdapt interchangeable system |
| Tool stations |
8 (MultiTip-Tooling possible) |
| Key grooves |
Upper and lower |
| Main compression force max. | 60 kN |
| Precompression force max. | 10 kN |
| Tablet diameter max. | 25 mm |
| Filling max. | 20 mm |
| Punch separation max. | 10 mm |
| Tablet output max. | 33.600 Pcs/h (with single-tip tooling) |
| Measuring points | Main compression, precompression, ejection force, scraper force, upper punch stiffness |
| Feeder type | Force feeder |
| Dimensions fully | W1.200 x D600 x H1.790 mm |
| Weight | 600 kg |
| Power supply | 400V, 3Ph + N, 50Hz |
Purchase of Pre-Owned Machines
If you have surplus tablet presses in your laboratory, development department or production, please let us know.
